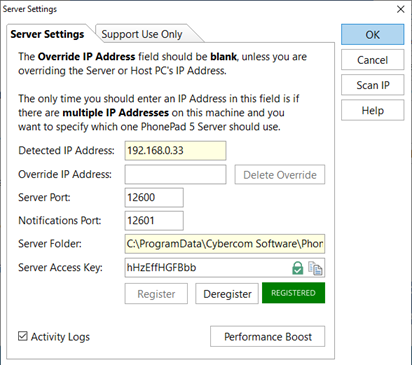

The default settings shown here should always be used unless you have a specific reason for not doing so.
Server IP Address
This is the detected IP Address.
Override IP Address
This should be left blank unless your Server or Host PC has multiple IP Addresses and you need to specify which IP Address to use.
Delete Override
Removes any IP Address from the Server IP Address field. You can also clear the field out yourself. Remember to click OK to save this change.
Server Port
The main data connection port for PhonePad. Do not change this unless there is a conflict with another process using the same port.
Notifications Port
The port used by the server to send message notifications to workstations. Do not change this unless there is a conflict with another process using the same port.
Server Folder
Shows the location of the PhonePad 5 Server folder. This setting cannot be edited.
Server Access Key
If your workstations are unable to find the PhonePad Server on your network, you can create a Server Access Key.
First, click the green padlock button to create a Server Access Key. The key next to that can be used to copy the key to the Windows Clipboard. This key will need to be entered into Workstation Config on each workstation.
Then click the Register button to register the key with the Server Access Key system on our web server. If the registration is successful, a green Registered icon will be displayed.
Important: The Server needs to be able to access the Internet for this feature to work.
Activity Logs
When checked, the service logs it processes and any errors it may encounter. It's recommended you have this checked.
Performance Boost
Displays the Performance Boost screen.
Scan IP
Scans the Server or Host PC for multiple IP Addresses.
