Server IP Address

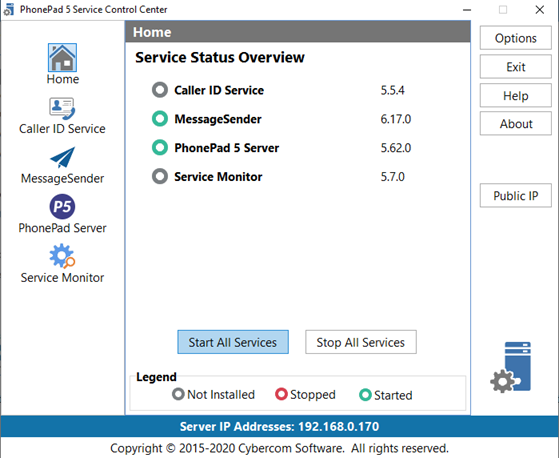

The Server's IP Address will be displayed at the bottom of the window. If there are multiple IP Addresses on your Server or Host PC then they will all be displayed.

If your Server or Host PC has multiple IP addresses and you need to change which one PhonePad 5 Server uses, click the Settings button and enter a new IP Address.

Clicking the Scan IP button allows you to manually scan for multiple IP Addresses on the computer.

Detected IP Addresses	ControlCenter will attempt to detect all active IP Addresses of the host machine and display them in this field. These addresses will be sent to workstations attempting to connect to the Server.
Add Override	Click this button to use the selected IP Address as the only address to be used. This only makes sense if your Server has multiple IP Addresses (eg. it has both an Ethernet connection and a Wireless connection).
Override IP Address	This should be left blank unless your Server or Host PC has multiple IP Addresses and you need to specify which IP Address to use.
Delete Override	Deletes the existing override.
Server Port	The main data connection port for PhonePad. Do not change this unless there is a conflict with another process using the same port.
Server Folder	Shows the location of the PhonePad 5 Server Folder. This setting cannot be edited.
Server Access Key	PhonePad's Auto-Discovery protocol uses UDP. On some networks this may be blocked. If you find that workstations are unable to find the PhonePad Server then you can use a Server Access Key that can be used by workstations. The small buttons to the right of this field generate a Server Access Key and copy the key to the Windows clipboard, respectively.
Register	Registers the Server Access Key. This must be done for the Server Access Key to work.
Deregister	Deregisters the Server Access Key, which means users will no longer be able to use it.
Registration Status	This will show either Registered or Unregistered.
Activity Logs	When checked, the service logs it processes and any errors it may encounter. It's recommended you have this checked.
Performance Boost	Displays the Performance Boost screen.
